Description
Product Description

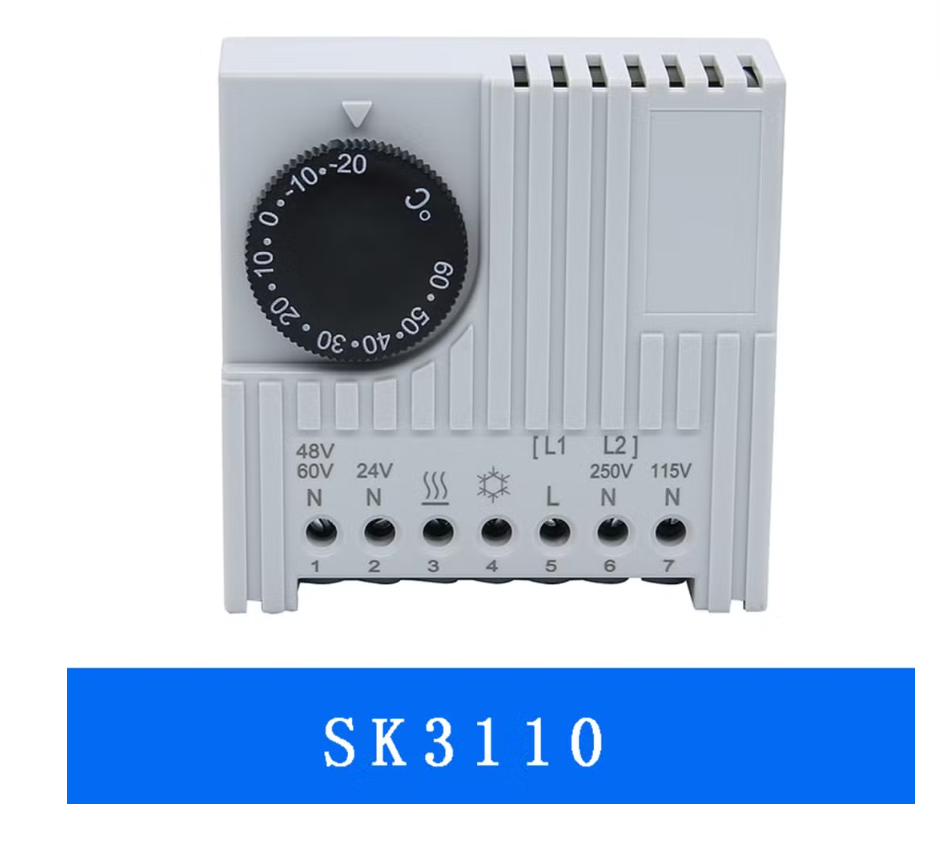

SKS110 Mechanical Adjustable Cabinet hygrostat
Industrial Thermostat Temperature Controller
1.Large temperature setting range
2.Small size
3.Simple to mount
4.High switching performance
5.CE approved
6.2 years warranty
| Switch temperature difference | 7K (± 4K tolerance) |
| Sensor element | thermostatic bimetal |
| Service life | > 100,000 cycles |
| Max. Switching capacity | 250VAC, 10 (2) A 120VAC, 15 (2) A DC 30W |
| Connection | 2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm² stranded wire (with wire end ferrule) 1.5mm² |
| Mounting | clip for 35mm DIN rail, EN60715 (or for exit filter EF 118 Series) |
| Casing | plastic according to UL94 V-0, light grey |
| Dimensions Weight Protection type |
60 x 33 x 43mm approx. 40g IP20 |
| Operating / Storage | -45 to +80°C (-49 to +176°F) max. 90 % RH (non-condensing) |
| Fitting position |
variable |
Order No.
| Setting range | Art. No. Contact Breaker (NC) | Art. No. Contact Maker (NO) | Approvais |
| 0 ~ +60°C | 01140.0-00 | 01141.0-00 | CE |
| -10 ~ +50°C | 01142.0-00 | 01143.0-00 | CE |
| +20 ~ +80°C | 01159.0-00 | 01158.0-00 | CE |
| +32 ~ +140°C | 01140.9-00 | 01141.9-00 | CE |
| +14 ~ +122°F | 01142.9-00 | 01143.9-00 | CE |
| 0 ~ +60°C | 01146.9-00 | 01147.9-00 | CE |
